A Real-World Guide to Narva Halogen Heating Elements
If you’re looking for a way to blast a specific part of a workpiece with intense heat without warming up the entire room, Narva halogen bulbs are your best bet. They’re basically designed to turn electricity into a concentrated beam of infrared heat.
Getting the Power Right
Here is the thing: the heat you get depends entirely on how you pair your wattage and voltage. If you go with a high-voltage setup, you can cram more power into a smaller filament. That gives you a really tight, focused heat zone. But you have to be careful. Your transformer output needs to match the lamp’s voltage exactly. Why? Because if you’re under-voltage, the heat just isn’t intense enough to do the job. But if you over-do it?**Pop.**The filament snaps instantly.
Why Quartz and How They Connect

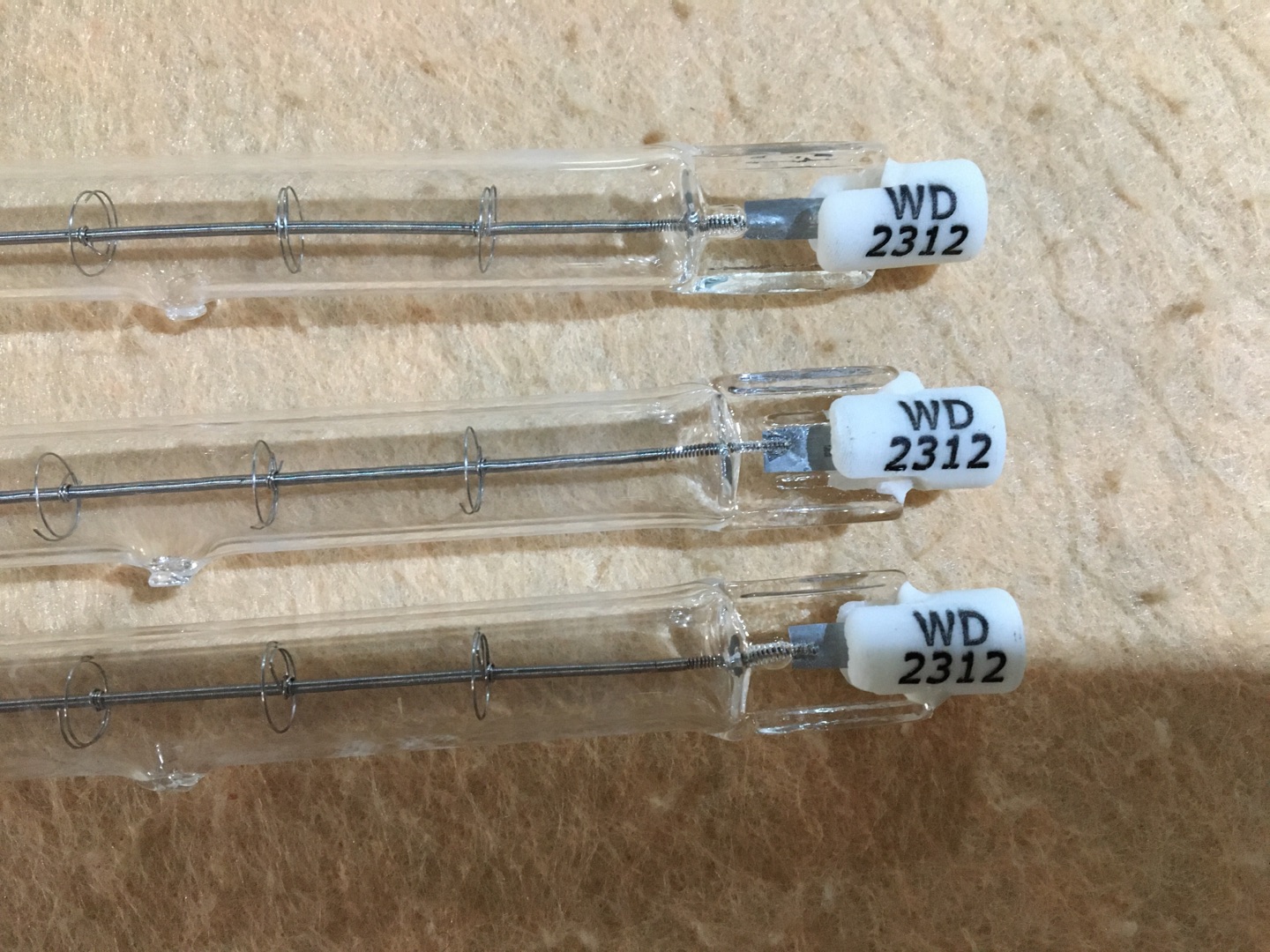

We use high-purity quartz glass because, frankly, the inside of these things gets scorching. Regular glass would just soften and warp. Plus, there’s a clever bit of chemistry happening inside. The halogen gas actually puts the tungsten back onto the filament as it wears down. It’s a cycle that keeps the bulb alive way longer than those old-school incandescent lights you’d find in a closet. As for the connectors, it depends on your setup. You’ll probably see R7s bases if you’re just sliding them in. But if your machine shakes or vibrates a lot, go with the Sk15 or the wire-lead versions. They stay put, which means no scary electrical arcing at the terminals.
Using Them in the Shop
You’ll see these all over the place in PET bottle blowing or plastic shrink tunnels. They’re great because they ramp up to temperature almost instantly. In a high-speed production line, that speed is everything. But a word of warning: these tubes throw heat in every direction. Sure, most of the energy hits your target, but your machine frame is still going to feel it. If you don’t get your reflectors and cooling fans sorted, you’re asking for trouble. I’ve seen mounting brackets warp and control panels trip just because someone skimped on the heat shielding.Don’t let that be you.
